Functions/Subroutines
subroutine, public	init_cak (tablename)
	This routine is called when the fld radiation module is initialised. Here, the tables for different He Abndcs are read and interpolated. More...

subroutine, public	set_cak_opacity (rho, temp, gradv, alpha_output, Qbar_output, Q0_output, kappa_e_output)
	This subroutine calculates the opacity for a given temperature-density structure. The opacities are read from a table that has the initialised metalicity. More...

subroutine	read_table (D, T, K, filename)
	This routine reads out values and arguments from a table. More...

subroutine	get_val_comb (K1_vals, K2_vals, K3_vals, K4_vals, Log_D_list, Log_T_list, D, T, K1, K2, K3, K4)
	This subroutine looks in the table for the four couples (T,R) More...

subroutine	get_low_up_index (x, x_list, imin, imax, low_i, up_i)
	this subroutine finds the indexes in R and T arrays of the two values surrounding the input R and T More...

subroutine	interpolate_krt (low_r, up_r, low_t, up_t, Log_D_list, Log_T_list, Kappa_vals, D, T, k_interp)
	This subroutine does a bilinear interpolation in the R,T-plane. More...

subroutine	interpolate1d (x1, x2, x, y1, y2, y)
	Interpolation in one dimension. More...

Variables
integer, parameter	dmin = 2
	min and max indices for R,T-range in opacity table More...

integer, parameter	dmax = 21

integer, parameter	tmin = 2

integer, parameter	tmax = 21

double precision, dimension(dmin:dmax, tmin:tmax), public	alpha_vals
	The opacity tables are read once and stored globally in Kappa_vals. More...

double precision, dimension(dmin:dmax, tmin:tmax), public	qbar_vals

double precision, dimension(dmin:dmax, tmin:tmax), public	q0_vals

double precision, dimension(dmin:dmax, tmin:tmax), public	kappa_e_vals

double precision, dimension(dmin:dmax), public	log_d_list

double precision, dimension(tmin:tmax), public	log_t_list

character(255), public	amrvac_dir

character(255), public	fileplace

Function/Subroutine Documentation

◆ get_low_up_index()

subroutine mod_cak_opacity::get_low_up_index	(	double precision, intent(in)	x,
		double precision, dimension(imin:imax), intent(in)	x_list,
		integer, intent(in)	imin,
		integer, intent(in)	imax,
		integer, intent(out)	low_i,
		integer, intent(out)	up_i
	)

this subroutine finds the indexes in R and T arrays of the two values surrounding the input R and T

Definition at line 164 of file mod_cak_opacity.t.

◆ get_val_comb()

subroutine mod_cak_opacity::get_val_comb	(	double precision, dimension(dmin:dmax,tmin:tmax), intent(in)	K1_vals,
		double precision, dimension(dmin:dmax,tmin:tmax), intent(in)	K2_vals,
		double precision, dimension(dmin:dmax,tmin:tmax), intent(in)	K3_vals,
		double precision, dimension(dmin:dmax,tmin:tmax), intent(in)	K4_vals,
		double precision, dimension(dmin:dmax), intent(in)	Log_D_list,
		double precision, dimension(tmin:tmax), intent(in)	Log_T_list,
		double precision, intent(in)	D,
		double precision, intent(in)	T,
		double precision, intent(out)	K1,
		double precision, intent(out)	K2,
		double precision, intent(out)	K3,
		double precision, intent(out)	K4
	)

This subroutine looks in the table for the four couples (T,R)

Definition at line 104 of file mod_cak_opacity.t.

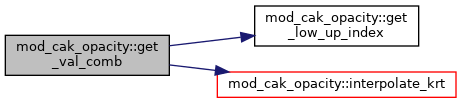

Here is the call graph for this function:

◆ init_cak()

subroutine, public mod_cak_opacity::init_cak ( character(6), intent(in) tablename )

This routine is called when the fld radiation module is initialised. Here, the tables for different He Abndcs are read and interpolated.

Definition at line 29 of file mod_cak_opacity.t.

Here is the call graph for this function:

◆ interpolate1d()

subroutine mod_cak_opacity::interpolate1d	(	double precision, intent(in)	x1,
		double precision, intent(in)	x2,
		double precision, intent(in)	x,
		double precision, intent(in)	y1,
		double precision, intent(in)	y2,
		double precision, intent(out)	y
	)

Interpolation in one dimension.

Definition at line 253 of file mod_cak_opacity.t.

◆ interpolate_krt()

subroutine mod_cak_opacity::interpolate_krt	(	integer, intent(in)	low_r,
		integer, intent(in)	up_r,
		integer, intent(in)	low_t,
		integer, intent(in)	up_t,
		double precision, dimension(dmin:dmax), intent(in)	Log_D_list,
		double precision, dimension(tmin:tmax), intent(in)	Log_T_list,
		double precision, dimension(dmin:dmax,tmin:tmax), intent(in)	Kappa_vals,
		double precision, intent(in)	D,
		double precision, intent(in)	T,
		double precision, intent(out)	k_interp
	)

This subroutine does a bilinear interpolation in the R,T-plane.

Definition at line 189 of file mod_cak_opacity.t.

Here is the call graph for this function:

◆ read_table()

subroutine mod_cak_opacity::read_table	(	double precision, dimension(dmin:dmax), intent(out)	D,
		double precision, dimension(tmin:tmax), intent(out)	T,
		double precision, dimension(dmin:dmax,tmin:tmax), intent(out)	K,
		character(*), intent(in)	filename
	)

This routine reads out values and arguments from a table.

Parameters

[out]	k	This routine reads in the the values for log kappa, and the values for log T and log R on the x and y axis
[out]	d	This routine reads in the the values for log kappa, and the values for log T and log R on the x and y axis
[out]	t	This routine reads in the the values for log kappa, and the values for log T and log R on the x and y axis

Read logT

Read T and K

NOT READING ENTIRE TABLE

Definition at line 79 of file mod_cak_opacity.t.

◆ set_cak_opacity()

subroutine, public mod_cak_opacity::set_cak_opacity	(	double precision, intent(in)	rho,
		double precision, intent(in)	temp,
		double precision, intent(in)	gradv,
		double precision, intent(out)	alpha_output,
		double precision, intent(out)	Qbar_output,
		double precision, intent(out)	Q0_output,
		double precision, intent(out)	kappa_e_output
	)

This subroutine calculates the opacity for a given temperature-density structure. The opacities are read from a table that has the initialised metalicity.

Definition at line 48 of file mod_cak_opacity.t.

Here is the call graph for this function:

Variable Documentation

◆ alpha_vals

double precision, dimension(dmin:dmax,tmin:tmax), public mod_cak_opacity::alpha_vals

The opacity tables are read once and stored globally in Kappa_vals.

Definition at line 11 of file mod_cak_opacity.t.

◆ amrvac_dir

character(255), public mod_cak_opacity::amrvac_dir

Definition at line 19 of file mod_cak_opacity.t.

◆ dmax

integer, parameter mod_cak_opacity::dmax = 21

Definition at line 6 of file mod_cak_opacity.t.

◆ dmin

integer, parameter mod_cak_opacity::dmin = 2

min and max indices for R,T-range in opacity table

Definition at line 5 of file mod_cak_opacity.t.

◆ fileplace

character(255), public mod_cak_opacity::fileplace

Definition at line 20 of file mod_cak_opacity.t.

◆ kappa_e_vals

double precision, dimension(dmin:dmax,tmin:tmax), public mod_cak_opacity::kappa_e_vals

Definition at line 14 of file mod_cak_opacity.t.

◆ log_d_list

double precision, dimension(dmin:dmax), public mod_cak_opacity::log_d_list

Definition at line 16 of file mod_cak_opacity.t.

◆ log_t_list

double precision, dimension(tmin:tmax), public mod_cak_opacity::log_t_list

Definition at line 17 of file mod_cak_opacity.t.

◆ q0_vals

double precision, dimension(dmin:dmax,tmin:tmax), public mod_cak_opacity::q0_vals

Definition at line 13 of file mod_cak_opacity.t.

◆ qbar_vals

double precision, dimension(dmin:dmax,tmin:tmax), public mod_cak_opacity::qbar_vals

Definition at line 12 of file mod_cak_opacity.t.

◆ tmax

integer, parameter mod_cak_opacity::tmax = 21

Definition at line 8 of file mod_cak_opacity.t.

◆ tmin

integer, parameter mod_cak_opacity::tmin = 2

Definition at line 7 of file mod_cak_opacity.t.
