mod_finite_difference Module Reference

Module with finite difference methods for fluxes. More...

Functions/Subroutines
subroutine, public	fd (qdt, ixIL, ixOL, idimsLIM, qtC, sCT, qt, snew, fC, fE, dxs, x)
subroutine	reconstructl (ixIL, iLL, idims, w, wLC)
subroutine	reconstructr (ixIL, iLL, idims, w, wRC)
subroutine, public	centdiff (method, qdt, ixIL, ixOL, idimsLIM, qtC, sCT, qt, s, fC, fE, dxs, x)

Detailed Description

Module with finite difference methods for fluxes.

Function/Subroutine Documentation

centdiff()

subroutine, public mod_finite_difference::centdiff	(	integer, intent(in)	method,
		double precision, intent(in)	qdt,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		integer, intent(in)	idims,
		integer, intent(in)	LIM,
		double precision, intent(in)	qtC,
		type(state)	sCT,
		double precision, intent(in)	qt,
		type(state)	s,
		double precision, dimension(ixi^s,1:nwflux,1:ndim)	fC,
		double precision, dimension(ixi^s,7-2*ndim:3)	fE,
		double precision, dimension(ndim), intent(in)	dxs,
		double precision, dimension(ixi^s,1:ndim), intent(in)	x
	)

Definition at line 285 of file mod_finite_difference.t.

Here is the call graph for this function:

fd()

subroutine, public mod_finite_difference::fd	(	double precision, intent(in)	qdt,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		integer, intent(in)	idims,
		integer, intent(in)	LIM,
		double precision, intent(in)	qtC,
		type(state)	sCT,
		double precision, intent(in)	qt,
		type(state)	snew,
		double precision, dimension(ixi^s,1:nwflux,1:ndim), intent(out)	fC,
		double precision, dimension(ixi^s,7-2*ndim:3)	fE,
		double precision, dimension(ndim), intent(in)	dxs,
		double precision, dimension(ixi^s,1:ndim), intent(in)	x
	)

Definition at line 12 of file mod_finite_difference.t.

Here is the call graph for this function:

reconstructl()

subroutine mod_finite_difference::reconstructl	(	integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	iL,
			L,
		integer, intent(in)	idims,
		double precision, dimension(ixi^s,1:nw), intent(in)	w,
		double precision, dimension(ixi^s,1:nw), intent(out)	wLC
	)

Definition at line 145 of file mod_finite_difference.t.

Here is the call graph for this function:

reconstructr()

subroutine mod_finite_difference::reconstructr	(	integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	iL,
			L,
		integer, intent(in)	idims,
		double precision, dimension(ixi^s,1:nw), intent(in)	w,
		double precision, dimension(ixi^s,1:nw), intent(out)	wRC
	)

Definition at line 215 of file mod_finite_difference.t.

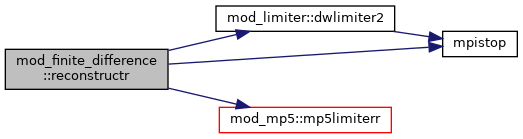

Here is the call graph for this function:
