This module reads in opacities from opal tables. More...
Functions/Subroutines | |
| subroutine, public | init_opal (He_abundance, tablename) |
| This routine is called when the fld radiation module is initialised. Here, the tables for different He Abndcs are read and interpolated. More... | |
| subroutine, public | set_opal_opacity (rho, temp, kappa) |
| This subroutine calculates the opacity for a given temperature-density structure. The opacities are read from a table that has the initialised metalicity. More... | |
| subroutine | read_table (R, T, K, filename) |
| This routine reads out values and arguments from an opacity table. More... | |
| subroutine | interpolate_two_tables (Y1, Y2, Y_in, K1, K2, K_interp) |
| This subroutine creates a new table for a given He abundance,. More... | |
| subroutine | get_kappa (Kappa_vals, Log_R_list, Log_T_list, R, T, K) |
| This subroutine looks in the table for the four couples (T,R) More... | |
| subroutine | get_low_up_index (x, x_list, imin, imax, low_i, up_i) |
| this subroutine finds the indexes in R and T arrays of the two values surrounding the input R and T More... | |
| subroutine | interpolate_krt (low_r, up_r, low_t, up_t, Log_R_list, Log_T_list, Kappa_vals, R, T, k_interp) |
| This subroutine does a bilinear interpolation in the R,T-plane. More... | |
| subroutine | interpolate1d (x1, x2, x, y1, y2, y) |
| Interpolation in one dimension. More... | |
Variables | |
| integer, parameter | rmin = 2 |
| min and max indices for R,T-range in opacity table More... | |
| integer, parameter | rmax = 20 |
| integer, parameter | tmin = 7 |
| integer, parameter | tmax = 76 |
| double precision, dimension(7:76, 2:20), public | kappa_vals |
| The opacity tables are read once and stored globally in Kappa_vals. More... | |
| double precision, dimension(7:76, 2:20), public | kappa_vals1 |
| double precision, dimension(7:76, 2:20), public | kappa_vals2 |
| double precision, dimension(2:20), public | log_r_list |
| double precision, dimension(7:76), public | log_t_list |
| character(255), public | amrvac_dir |
| character(255), public | fileplace |
Detailed Description
This module reads in opacities from opal tables.
Function/Subroutine Documentation

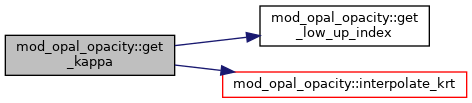

◆ get_kappa()
| subroutine mod_opal_opacity::get_kappa | ( | double precision, dimension(7:76,2:20), intent(in) | Kappa_vals, |
| double precision, dimension(2:20), intent(in) | Log_R_list, | ||
| double precision, dimension(7:76), intent(in) | Log_T_list, | ||
| double precision, intent(in) | R, | ||
| double precision, intent(in) | T, | ||
| double precision, intent(out) | K | ||
| ) |
This subroutine looks in the table for the four couples (T,R)
Definition at line 196 of file mod_opal_opacity.t.
◆ get_low_up_index()
| subroutine mod_opal_opacity::get_low_up_index | ( | double precision, intent(in) | x, |
| double precision, dimension(imin:imax), intent(in) | x_list, | ||
| integer, intent(in) | imin, | ||
| integer, intent(in) | imax, | ||
| integer, intent(out) | low_i, | ||
| integer, intent(out) | up_i | ||
| ) |
this subroutine finds the indexes in R and T arrays of the two values surrounding the input R and T
Definition at line 238 of file mod_opal_opacity.t.
◆ init_opal()
| subroutine, public mod_opal_opacity::init_opal | ( | double precision, intent(in) | He_abundance, |
| character(6), intent(in) | tablename | ||
| ) |
This routine is called when the fld radiation module is initialised. Here, the tables for different He Abndcs are read and interpolated.
Y1 actually 1.0, NOT 0.1???
WR
RSG
General
Definition at line 36 of file mod_opal_opacity.t.
◆ interpolate1d()
| subroutine mod_opal_opacity::interpolate1d | ( | double precision, intent(in) | x1, |
| double precision, intent(in) | x2, | ||
| double precision, intent(in) | x, | ||
| double precision, intent(in) | y1, | ||
| double precision, intent(in) | y2, | ||
| double precision, intent(out) | y | ||
| ) |
Interpolation in one dimension.
Definition at line 312 of file mod_opal_opacity.t.
◆ interpolate_krt()
| subroutine mod_opal_opacity::interpolate_krt | ( | integer, intent(in) | low_r, |
| integer, intent(in) | up_r, | ||
| integer, intent(in) | low_t, | ||
| integer, intent(in) | up_t, | ||
| double precision, dimension(2:20), intent(in) | Log_R_list, | ||
| double precision, dimension(7:76), intent(in) | Log_T_list, | ||
| double precision, dimension(7:76,2:20), intent(in) | Kappa_vals, | ||
| double precision, intent(in) | R, | ||
| double precision, intent(in) | T, | ||
| double precision, intent(out) | k_interp | ||
| ) |
This subroutine does a bilinear interpolation in the R,T-plane.
Definition at line 263 of file mod_opal_opacity.t.
◆ interpolate_two_tables()
| subroutine mod_opal_opacity::interpolate_two_tables | ( | double precision, intent(in) | Y1, |
| double precision, intent(in) | Y2, | ||
| double precision, intent(in) | Y_in, | ||
| double precision, dimension(7:76,2:20), intent(in) | K1, | ||
| double precision, dimension(7:76,2:20), intent(in) | K2, | ||
| double precision, dimension(7:76,2:20), intent(out) | K_interp | ||
| ) |
This subroutine creates a new table for a given He abundance,.
Definition at line 177 of file mod_opal_opacity.t.
◆ read_table()
| subroutine mod_opal_opacity::read_table | ( | double precision, dimension(2:20), intent(out) | R, |
| double precision, dimension(7:76), intent(out) | T, | ||
| double precision, dimension(7:76,2:20), intent(out) | K, | ||
| character(*), intent(in) | filename | ||
| ) |
This routine reads out values and arguments from an opacity table.
- Parameters
-
[out] k This routine reads in the the values for log kappa, and the values for log T and log R on the x and y axis [out] r This routine reads in the the values for log kappa, and the values for log T and log R on the x and y axis [out] t This routine reads in the the values for log kappa, and the values for log T and log R on the x and y axis
Skip first 4 lines
Read R
Read T and K
NOT READING ENTIRE TABLE
Definition at line 144 of file mod_opal_opacity.t.
◆ set_opal_opacity()
| subroutine, public mod_opal_opacity::set_opal_opacity | ( | double precision, intent(in) | rho, |
| double precision, intent(in) | temp, | ||
| double precision, intent(out) | kappa | ||
| ) |
This subroutine calculates the opacity for a given temperature-density structure. The opacities are read from a table that has the initialised metalicity.
If the outcome is 9.999, look right in the table
If the outcome is NaN, look left in the table
Definition at line 111 of file mod_opal_opacity.t.
Variable Documentation
◆ amrvac_dir
| character(255), public mod_opal_opacity::amrvac_dir |
Definition at line 20 of file mod_opal_opacity.t.
◆ fileplace
| character(255), public mod_opal_opacity::fileplace |
Definition at line 21 of file mod_opal_opacity.t.
◆ kappa_vals
| double precision, dimension(7:76,2:20), public mod_opal_opacity::kappa_vals |
The opacity tables are read once and stored globally in Kappa_vals.
Definition at line 13 of file mod_opal_opacity.t.
◆ kappa_vals1
| double precision, dimension(7:76,2:20), public mod_opal_opacity::kappa_vals1 |
Definition at line 14 of file mod_opal_opacity.t.
◆ kappa_vals2
| double precision, dimension(7:76,2:20), public mod_opal_opacity::kappa_vals2 |
Definition at line 15 of file mod_opal_opacity.t.
◆ log_r_list
| double precision, dimension(2:20), public mod_opal_opacity::log_r_list |
Definition at line 17 of file mod_opal_opacity.t.
◆ log_t_list
| double precision, dimension(7:76), public mod_opal_opacity::log_t_list |
Definition at line 18 of file mod_opal_opacity.t.
◆ rmax
| integer, parameter mod_opal_opacity::rmax = 20 |
Definition at line 8 of file mod_opal_opacity.t.
◆ rmin
| integer, parameter mod_opal_opacity::rmin = 2 |
min and max indices for R,T-range in opacity table
Definition at line 7 of file mod_opal_opacity.t.
◆ tmax
| integer, parameter mod_opal_opacity::tmax = 76 |
Definition at line 10 of file mod_opal_opacity.t.
◆ tmin
| integer, parameter mod_opal_opacity::tmin = 7 |
Definition at line 9 of file mod_opal_opacity.t.
