mod_rhd_phys Module Reference

Radiation-Hydrodynamics physics module Module aims at solving the Hydrodynamic equations toghether with the zeroth moment of the radiative transfer equation. A closure is provided by the flux limited diffusion (FLD)-approximation in the mod_fld.t module. See [1]Moens, N., Sundqvist, J. O., El Mellah, I., Poniatowski, L., Teunissen, J., and Keppens, R., “Radiation-hydrodynamics with MPI-AMRVAC . Flux-limited diffusion”, Astronomy and Astrophysics, vol. 657, 2022. doi:10.1051/0004-6361/202141023. For more information. Another possible closure in the works is the anisotropic flux limited diffusion approximation (AFLD) described in mod_afld.t. More...

Functions/Subroutines
subroutine	rhd_write_info (fh)
	Write this module's parameters to a snapsoht. More...
subroutine	rhd_angmomfix (fC, x, wnew, ixIL, ixOL, idim)
	Add fluxes in an angular momentum conserving way. More...

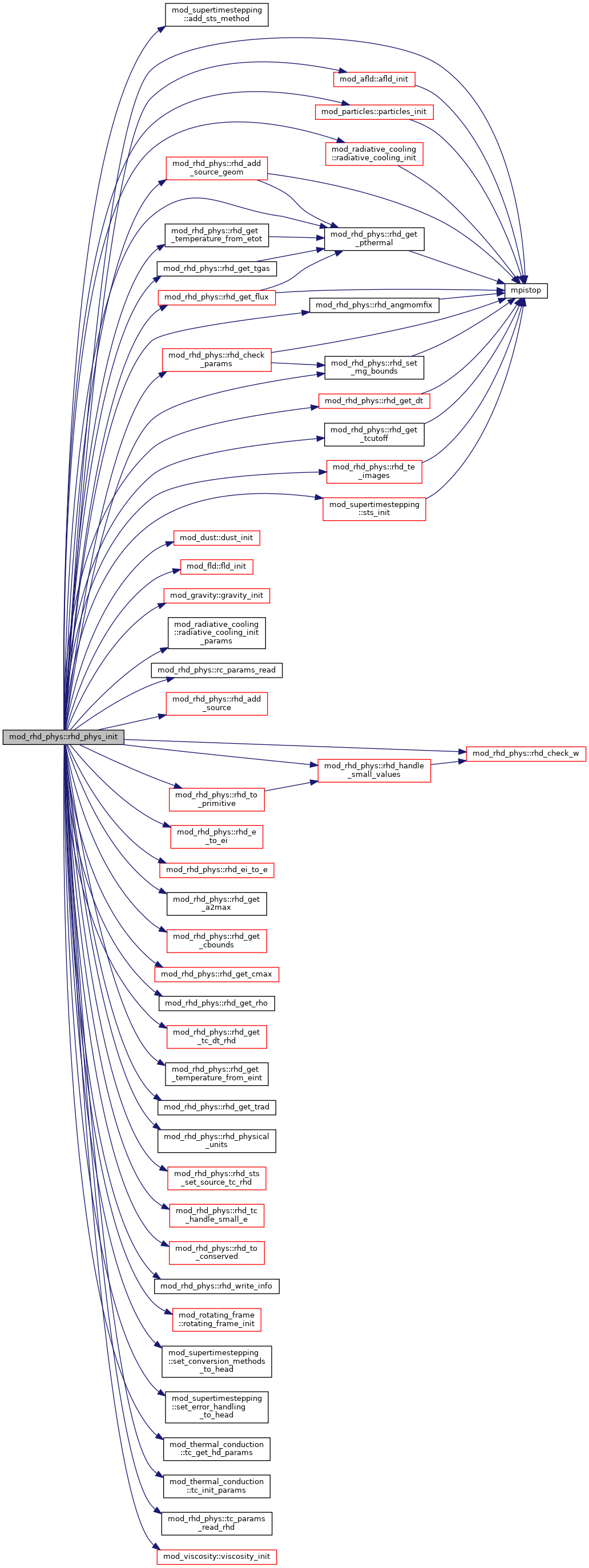

subroutine, public	rhd_phys_init ()
	Initialize the module. More...

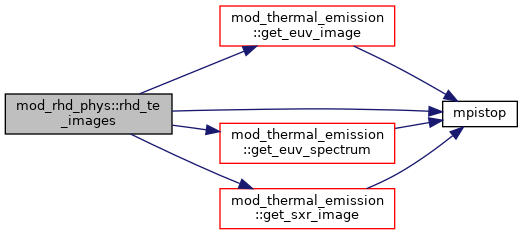

subroutine	rhd_te_images ()
subroutine	rhd_sts_set_source_tc_rhd (ixIL, ixOL, w, x, wres, fix_conserve_at_step, my_dt, igrid, nflux)
double precision function	rhd_get_tc_dt_rhd (w, ixIL, ixOL, dxD, x)

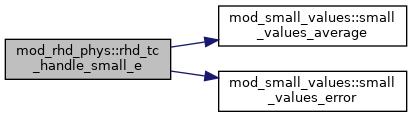

subroutine	rhd_tc_handle_small_e (w, x, ixIL, ixOL, step)
subroutine	tc_params_read_rhd (fl)
subroutine	rhd_get_rho (w, x, ixIL, ixOL, rho)
subroutine	rc_params_read (fl)
subroutine, public	rhd_check_params
subroutine, public	rhd_set_mg_bounds
	Set the boundaries for the diffusion of E. More...
subroutine	rhd_physical_units
subroutine, public	rhd_check_w (primitive, ixIL, ixOL, w, flag)
	Returns logical argument flag where values are ok. More...
subroutine, public	rhd_to_conserved (ixIL, ixOL, w, x)
	Transform primitive variables into conservative ones. More...

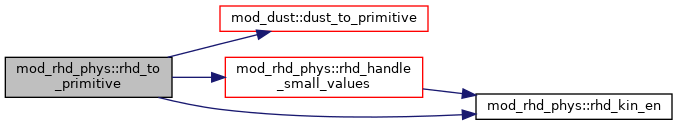

subroutine, public	rhd_to_primitive (ixIL, ixOL, w, x)
	Transform conservative variables into primitive ones. More...
subroutine	rhd_ei_to_e (ixIL, ixOL, w, x)
	Transform internal energy to total energy. More...
subroutine	rhd_e_to_ei (ixIL, ixOL, w, x)
	Transform total energy to internal energy. More...
subroutine	e_to_rhos (ixIL, ixOL, w, x)
subroutine	rhos_to_e (ixIL, ixOL, w, x)
subroutine	rhd_get_v (w, x, ixIL, ixOL, idim, v)
	Calculate v_i = m_i / rho within ixO^L. More...

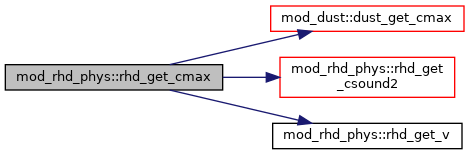

subroutine	rhd_get_cmax (w, x, ixIL, ixOL, idim, cmax)
	Calculate cmax_idim = csound + abs(v_idim) within ixO^L. More...
subroutine	rhd_get_a2max (w, x, ixIL, ixOL, a2max)
subroutine	rhd_get_tcutoff (ixIL, ixOL, w, x, tco_local, Tmax_local)
	get adaptive cutoff temperature for TRAC (Johnston 2019 ApJL, 873, L22) More...

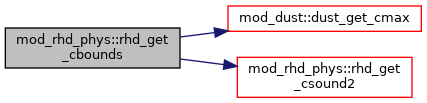

subroutine	rhd_get_cbounds (wLC, wRC, wLp, wRp, x, ixIL, ixOL, idim, Hspeed, cmax, cmin)
	Calculate cmax_idim = csound + abs(v_idim) within ixO^L. More...
subroutine, public	rhd_get_csound2 (w, x, ixIL, ixOL, csound2)
	Calculate the square of the thermal sound speed csound2 within ixO^L. csound2=gamma*p/rho. More...
subroutine, public	rhd_get_pthermal (w, x, ixIL, ixOL, pth)
	Calculate thermal pressure=(gamma-1)*(e-0.5*m**2/rho) within ixO^L. More...

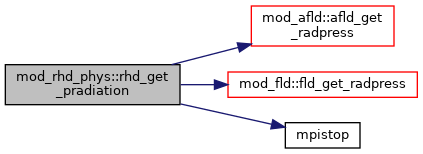

subroutine, public	rhd_get_pradiation (w, x, ixIL, ixOL, prad)
	Calculate radiation pressure within ixO^L. More...

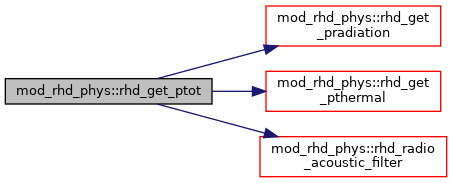

subroutine, public	rhd_get_ptot (w, x, ixIL, ixOL, ptot)
	calculates the sum of the gas pressure and max Prad tensor element More...
subroutine	rhd_radio_acoustic_filter (x, ixIL, ixOL, prad_max)
	Filter peaks in cmax due to radiation energy density, used for debugging. More...
subroutine	rhd_get_temperature_from_etot (w, x, ixIL, ixOL, res)
	Calculate temperature=p/rho when in e_ the total energy is stored. More...
subroutine	rhd_get_temperature_from_eint (w, x, ixIL, ixOL, res)
	Calculate temperature=p/rho when in e_ the internal energy is stored. More...
subroutine, public	rhd_get_tgas (w, x, ixIL, ixOL, tgas)
	Calculates gas temperature. More...
subroutine, public	rhd_get_trad (w, x, ixIL, ixOL, trad)
	Calculates radiation temperature. More...
subroutine	rhd_ei_to_e1 (ixIL, ixOL, w, x)
subroutine	rhd_e_to_ei1 (ixIL, ixOL, w, x)
	Transform total energy to internal energy. More...

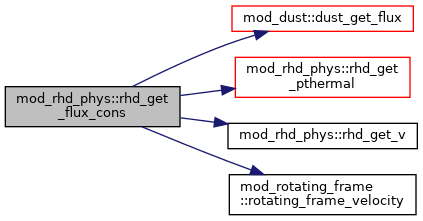

subroutine	rhd_get_flux_cons (w, x, ixIL, ixOL, idim, f)
subroutine	rhd_get_flux (wC, w, x, ixIL, ixOL, idim, f)
subroutine	rhd_add_source_geom (qdt, ixIL, ixOL, wCT, w, x)
	Add geometrical source terms to w. More...
subroutine	rhd_add_source (qdt, ixIL, ixOL, wCT, w, x, qsourcesplit, active, wCTprim)
subroutine	rhd_add_radiation_source (qdt, ixIL, ixOL, wCT, w, x, qsourcesplit, active)

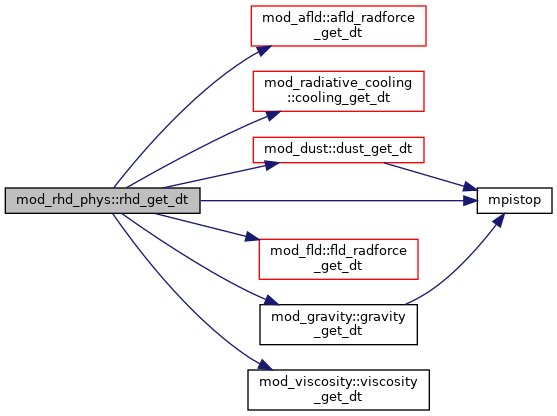

subroutine	rhd_get_dt (w, ixIL, ixOL, dtnew, dxD, x)
double precision function, dimension(ixo^s), public	rhd_kin_en (w, ixIL, ixOL, inv_rho)
double precision function, dimension(ixo^s)	rhd_inv_rho (w, ixIL, ixOL)

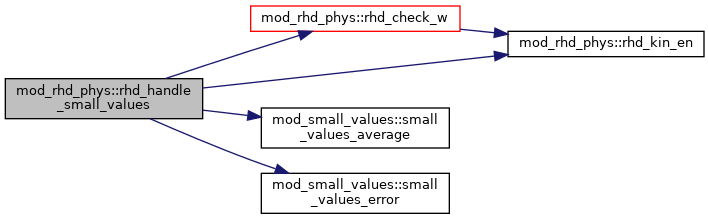

subroutine	rhd_handle_small_values (primitive, w, x, ixIL, ixOL, subname)

Variables
logical, public, protected	rhd_energy = .true.
	Whether an energy equation is used. More...
logical, public, protected	rhd_thermal_conduction = .false.
	Whether thermal conduction is added. More...
type(tc_fluid), allocatable, public	tc_fl
type(te_fluid), allocatable, public	te_fl_rhd
logical, public, protected	rhd_radiative_cooling = .false.
	Whether radiative cooling is added. More...
type(rc_fluid), allocatable, public	rc_fl
logical, public, protected	rhd_dust = .false.
	Whether dust is added. More...
logical, public, protected	rhd_viscosity = .false.
	Whether viscosity is added. More...
logical, public, protected	rhd_gravity = .false.
	Whether gravity is added. More...
logical, public, protected	rhd_particles = .false.
	Whether particles module is added. More...
logical, public, protected	rhd_rotating_frame = .false.
	Whether rotating frame is activated. More...
integer, public, protected	rhd_n_tracer = 0
	Number of tracer species. More...
integer, public, protected	rho_
	Index of the density (in the w array) More...
integer, dimension(:), allocatable, public, protected	mom
	Indices of the momentum density. More...
integer, dimension(:), allocatable, public, protected	tracer
	Indices of the tracers. More...
integer, public, protected	e_
	Index of the energy density (-1 if not present) More...
integer, public, protected	p_
	Index of the gas pressure (-1 if not present) should equal e_. More...
integer, public, protected	r_e
	Index of the radiation energy. More...
integer, public, protected	tcoff_
	Index of the cutoff temperature for the TRAC method. More...
double precision, public	rhd_gamma = 5.d0/3.0d0
	The adiabatic index. More...
double precision, public	rhd_adiab = 1.0d0
	The adiabatic constant. More...
double precision, public, protected	small_r_e = 0.d0
	The smallest allowed radiation energy. More...
logical, public, protected	rhd_trac = .false.
	Whether TRAC method is used. More...
integer, public, protected	rhd_trac_type = 1
logical, public, protected	rhd_force_diagonal = .false.
	Allows overruling default corner filling (for debug mode, since otherwise corner primitives fail) More...
double precision, public, protected	he_abundance =0.1d0
	Helium abundance over Hydrogen. More...
character(len=8), public	rhd_radiation_formalism = 'fld'
	Formalism to treat radiation. More...
character(len=8), public	rhd_pressure = 'Trad'
	In the case of no rhd_energy, how to compute pressure. More...
logical, public, protected	rhd_radiation_force = .true.
	Treat radiation fld_Rad_force. More...
logical, public, protected	rhd_energy_interact = .true.
	Treat radiation-gas energy interaction. More...
logical, public, protected	rhd_radiation_diffusion = .true.
	Treat radiation energy diffusion. More...
logical, public, protected	rhd_radiation_advection = .true.
	Treat radiation advection. More...
double precision, public	kbmpmua4
	kb/(m_p mu)* 1/a_rad**4, More...

Detailed Description

Radiation-Hydrodynamics physics module Module aims at solving the Hydrodynamic equations toghether with the zeroth moment of the radiative transfer equation. A closure is provided by the flux limited diffusion (FLD)-approximation in the mod_fld.t module. See [1]Moens, N., Sundqvist, J. O., El Mellah, I., Poniatowski, L., Teunissen, J., and Keppens, R., “Radiation-hydrodynamics with MPI-AMRVAC . Flux-limited diffusion”, Astronomy and Astrophysics, vol. 657, 2022. doi:10.1051/0004-6361/202141023. For more information. Another possible closure in the works is the anisotropic flux limited diffusion approximation (AFLD) described in mod_afld.t.

Function/Subroutine Documentation

e_to_rhos()

subroutine mod_rhd_phys::e_to_rhos	(	integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s, nw)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x
	)

Definition at line 836 of file mod_rhd_phys.t.

Here is the call graph for this function:

rc_params_read()

subroutine mod_rhd_phys::rc_params_read

(

type(rc_fluid), intent(inout)

fl

)

Name of cooling curve

Name of cooling method

Fixed temperature not lower than tlow

Lower limit of temperature

Add cooling source in a split way (.true.) or un-split way (.false.)

Definition at line 563 of file mod_rhd_phys.t.

rhd_add_radiation_source()

subroutine mod_rhd_phys::rhd_add_radiation_source	(	double precision, intent(in)	qdt,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s,1:nw), intent(in)	wCT,
		double precision, dimension(ixi^s,1:nw), intent(inout)	w,
		double precision, dimension(ixi^s,1:ndim), intent(in)	x,
		logical, intent(in)	qsourcesplit,
		logical, intent(inout)	active
	)

radiation force

photon tiring, heating and cooling

radiation force

photon tiring, heating and cooling

Definition at line 1648 of file mod_rhd_phys.t.

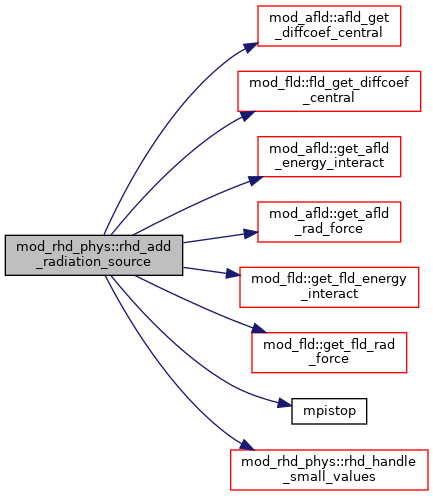

Here is the call graph for this function:

rhd_add_source()

subroutine mod_rhd_phys::rhd_add_source	(	double precision, intent(in)	qdt,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s, 1:nw), intent(in)	wCT,
		double precision, dimension(ixi^s, 1:nw), intent(inout)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x,
		logical, intent(in)	qsourcesplit,
		logical, intent(inout)	active,
		double precision, dimension(ixi^s, 1:nw), intent(in), optional	wCTprim
	)

This is where the radiation force and heating/cooling are added/

Definition at line 1593 of file mod_rhd_phys.t.

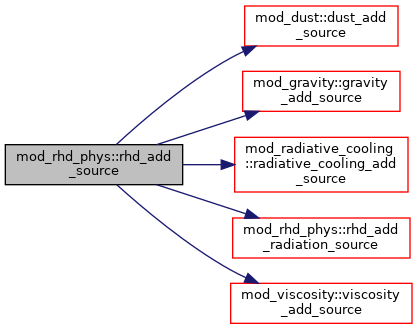

Here is the call graph for this function:

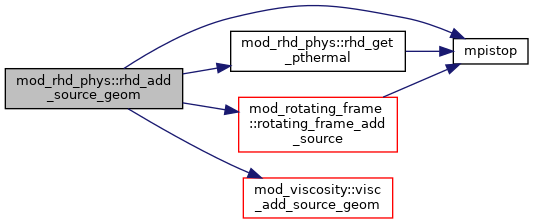

rhd_add_source_geom()

subroutine mod_rhd_phys::rhd_add_source_geom	(	double precision, intent(in)	qdt,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s, 1:nw), intent(inout)	wCT,
		double precision, dimension(ixi^s, 1:nw), intent(inout)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x
	)

Add geometrical source terms to w.

Notice that the expressions of the geometrical terms depend only on ndir, not ndim. Eg, they are the same in 2.5D and in 3D, for any geometry.

Ileyk : to do :

• address the source term for the dust in case (coordinate == spherical)

Definition at line 1459 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_angmomfix()

subroutine mod_rhd_phys::rhd_angmomfix	(	double precision, dimension(ixi^s,1:nwflux,1:ndim), intent(inout)	fC,
		double precision, dimension(ixi^s,1:ndim), intent(in)	x,
		double precision, dimension(ixi^s,1:nw), intent(inout)	wnew,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		integer, intent(in)	idim
	)

Add fluxes in an angular momentum conserving way.

Definition at line 176 of file mod_rhd_phys.t.

Here is the call graph for this function:

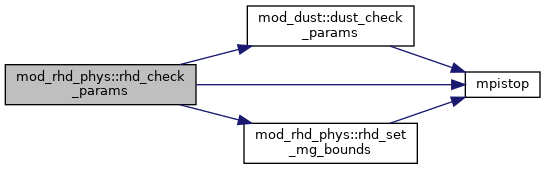

rhd_check_params()

subroutine, public mod_rhd_phys::rhd_check_params

Definition at line 607 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_check_w()

subroutine, public mod_rhd_phys::rhd_check_w	(	logical, intent(in)	primitive,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s, nw), intent(in)	w,
		logical, dimension(ixi^s,1:nw), intent(inout)	flag
	)

Returns logical argument flag where values are ok.

Definition at line 714 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_e_to_ei()

subroutine mod_rhd_phys::rhd_e_to_ei	(	integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s, nw), intent(inout)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x
	)

Transform total energy to internal energy.

Definition at line 824 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_e_to_ei1()

subroutine mod_rhd_phys::rhd_e_to_ei1	(	integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s, nw), intent(inout)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x
	)

Transform total energy to internal energy.

Definition at line 1325 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_ei_to_e()

subroutine mod_rhd_phys::rhd_ei_to_e	(	integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s, nw), intent(inout)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x
	)

Transform internal energy to total energy.

Definition at line 811 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_ei_to_e1()

subroutine mod_rhd_phys::rhd_ei_to_e1	(	integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s, nw), intent(inout)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x
	)

Definition at line 1311 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_get_a2max()

subroutine mod_rhd_phys::rhd_get_a2max	(	double precision, dimension(ixi^s, nw), intent(in)	w,
		double precision, dimension(ixi^s,1:ndim), intent(in)	x,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ndim), intent(inout)	a2max
	)

4th order

Definition at line 898 of file mod_rhd_phys.t.

rhd_get_cbounds()

subroutine mod_rhd_phys::rhd_get_cbounds	(	double precision, dimension(ixi^s, nw), intent(in)	wLC,
		double precision, dimension(ixi^s, nw), intent(in)	wRC,
		double precision, dimension(ixi^s, nw), intent(in)	wLp,
		double precision, dimension(ixi^s, nw), intent(in)	wRp,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		integer, intent(in)	idim,
		double precision, dimension(ixi^s,1:number_species), intent(in)	Hspeed,
		double precision, dimension(ixi^s,1:number_species), intent(inout)	cmax,
		double precision, dimension(ixi^s,1:number_species), intent(inout), optional	cmin
	)

Calculate cmax_idim = csound + abs(v_idim) within ixO^L.

Definition at line 975 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_get_cmax()

subroutine mod_rhd_phys::rhd_get_cmax	(	double precision, dimension(ixi^s, nw), intent(in)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		integer, intent(in)	idim,
		double precision, dimension(ixi^s), intent(inout)	cmax
	)

Calculate cmax_idim = csound + abs(v_idim) within ixO^L.

Definition at line 877 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_get_csound2()

subroutine, public mod_rhd_phys::rhd_get_csound2	(	double precision, dimension(ixi^s,nw), intent(in)	w,
		double precision, dimension(ixi^s,1:ndim), intent(in)	x,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s), intent(out)	csound2
	)

Calculate the square of the thermal sound speed csound2 within ixO^L. csound2=gamma*p/rho.

Turner & Stone 2001

Definition at line 1101 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_get_dt()

subroutine mod_rhd_phys::rhd_get_dt	(	double precision, dimension(ixi^s, 1:nw), intent(in)	w,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, intent(inout)	dtnew,
		double precision, intent(in)	dx,
		double precision, intent(in)	D,
		double precision, dimension(ixi^s, 1:^nd), intent(in)	x
	)

Definition at line 1708 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_get_flux()

subroutine mod_rhd_phys::rhd_get_flux	(	double precision, dimension(ixi^s, 1:nw), intent(in)	wC,
		double precision, dimension(ixi^s, 1:nw), intent(in)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		integer, intent(in)	idim,
		double precision, dimension(ixi^s, nwflux), intent(out)	f
	)

Definition at line 1388 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_get_flux_cons()

subroutine mod_rhd_phys::rhd_get_flux_cons	(	double precision, dimension(ixi^s, 1:nw), intent(in)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		integer, intent(in)	idim,
		double precision, dimension(ixi^s, nwflux), intent(out)	f
	)

Definition at line 1338 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_get_pradiation()

subroutine, public mod_rhd_phys::rhd_get_pradiation	(	double precision, dimension(ixi^s, 1:nw), intent(in)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixo^s, 1:ndim, 1:ndim), intent(out)	prad
	)

Calculate radiation pressure within ixO^L.

Definition at line 1178 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_get_pthermal()

subroutine, public mod_rhd_phys::rhd_get_pthermal	(	double precision, dimension(ixi^s, 1:nw), intent(in)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s), intent(out)	pth
	)

Calculate thermal pressure=(gamma-1)*(e-0.5*m**2/rho) within ixO^L.

Thermal conduction?!

Definition at line 1115 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_get_ptot()

subroutine, public mod_rhd_phys::rhd_get_ptot	(	double precision, dimension(ixi^s, 1:nw), intent(in)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s), intent(out)	ptot
	)

calculates the sum of the gas pressure and max Prad tensor element

filter cmax

Definition at line 1199 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_get_rho()

subroutine mod_rhd_phys::rhd_get_rho	(	double precision, dimension(ixi^s,1:nw), intent(in)	w,
		double precision, dimension(ixi^s,1:ndim), intent(in)	x,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s), intent(out)	rho
	)

Definition at line 551 of file mod_rhd_phys.t.

rhd_get_tc_dt_rhd()

double precision function mod_rhd_phys::rhd_get_tc_dt_rhd	(	double precision, dimension(ixi^s,1:nw), intent(in)	w,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, intent(in)	dx,
		double precision, intent(in)	D,
		double precision, dimension(ixi^s,1:ndim), intent(in)	x
	)

Definition at line 480 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_get_tcutoff()

subroutine mod_rhd_phys::rhd_get_tcutoff	(	integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s,1:nw), intent(inout)	w,
		double precision, dimension(ixi^s,1:ndim), intent(in)	x,
		double precision, intent(out)	tco_local,
		double precision, intent(out)	Tmax_local
	)

get adaptive cutoff temperature for TRAC (Johnston 2019 ApJL, 873, L22)

iijima et al. 2021, LTRAC method

Definition at line 921 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_get_temperature_from_eint()

subroutine mod_rhd_phys::rhd_get_temperature_from_eint	(	double precision, dimension(ixi^s, 1:nw), intent(in)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s), intent(out)	res
	)

Calculate temperature=p/rho when in e_ the internal energy is stored.

Definition at line 1269 of file mod_rhd_phys.t.

rhd_get_temperature_from_etot()

subroutine mod_rhd_phys::rhd_get_temperature_from_etot	(	double precision, dimension(ixi^s, 1:nw), intent(in)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s), intent(out)	res
	)

Calculate temperature=p/rho when in e_ the total energy is stored.

Definition at line 1256 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_get_tgas()

subroutine, public mod_rhd_phys::rhd_get_tgas	(	double precision, dimension(ixi^s, 1:nw), intent(in)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s), intent(out)	tgas
	)

Calculates gas temperature.

Definition at line 1279 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_get_trad()

subroutine, public mod_rhd_phys::rhd_get_trad	(	double precision, dimension(ixi^s, 1:nw), intent(in)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s), intent(out)	trad
	)

Calculates radiation temperature.

Definition at line 1294 of file mod_rhd_phys.t.

rhd_get_v()

subroutine mod_rhd_phys::rhd_get_v	(	double precision, dimension(ixi^s, nw), intent(in)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		integer, intent(in)	idim,
		double precision, dimension(ixi^s), intent(out)	v
	)

Calculate v_i = m_i / rho within ixO^L.

Definition at line 867 of file mod_rhd_phys.t.

rhd_handle_small_values()

subroutine mod_rhd_phys::rhd_handle_small_values	(	logical, intent(in)	primitive,
		double precision, dimension(ixi^s,1:nw), intent(inout)	w,
		double precision, dimension(ixi^s,1:ndim), intent(in)	x,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		character(len=*), intent(in)	subname
	)

Definition at line 1783 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_inv_rho()

double precision function, dimension(ixo^s) mod_rhd_phys::rhd_inv_rho	(	double precision, dimension(ixi^s, nw), intent(in)	w,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L
	)

Definition at line 1773 of file mod_rhd_phys.t.

rhd_kin_en()

double precision function, dimension(ixo^s), public mod_rhd_phys::rhd_kin_en	(	double precision, dimension(ixi^s, nw), intent(in)	w,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixo^s), intent(in), optional	inv_rho
	)

Definition at line 1759 of file mod_rhd_phys.t.

rhd_phys_init()

subroutine, public mod_rhd_phys::rhd_phys_init

Initialize the module.

set radiation energy

Initiate radiation-closure module

Usefull constante

Definition at line 236 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_physical_units()

subroutine mod_rhd_phys::rhd_physical_units

Units for radiative flux and opacity

Definition at line 672 of file mod_rhd_phys.t.

rhd_radio_acoustic_filter()

subroutine mod_rhd_phys::rhd_radio_acoustic_filter	(	double precision, dimension(ixi^s, 1:ndim), intent(in)	x,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixo^s), intent(inout)	prad_max
	)

Filter peaks in cmax due to radiation energy density, used for debugging.

Definition at line 1228 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_set_mg_bounds()

subroutine, public mod_rhd_phys::rhd_set_mg_bounds

Set the boundaries for the diffusion of E.

Definition at line 636 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_sts_set_source_tc_rhd()

subroutine mod_rhd_phys::rhd_sts_set_source_tc_rhd	(	integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s,1:nw), intent(inout)	w,
		double precision, dimension(ixi^s,1:ndim), intent(in)	x,
		double precision, dimension(ixi^s,1:nw), intent(inout)	wres,
		logical, intent(in)	fix_conserve_at_step,
		double precision, intent(in)	my_dt,
		integer, intent(in)	igrid,
		integer, intent(in)	nflux
	)

Definition at line 467 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_tc_handle_small_e()

subroutine mod_rhd_phys::rhd_tc_handle_small_e	(	double precision, dimension(ixi^s,1:nw), intent(inout)	w,
		double precision, dimension(ixi^s,1:ndim), intent(in)	x,
		integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		integer, intent(in)	step
	)

Definition at line 496 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_te_images()

subroutine mod_rhd_phys::rhd_te_images

Definition at line 449 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_to_conserved()

subroutine, public mod_rhd_phys::rhd_to_conserved	(	integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s, nw), intent(inout)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x
	)

Transform primitive variables into conservative ones.

Definition at line 745 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_to_primitive()

subroutine, public mod_rhd_phys::rhd_to_primitive	(	integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s, nw), intent(inout)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x
	)

Transform conservative variables into primitive ones.

Definition at line 777 of file mod_rhd_phys.t.

Here is the call graph for this function:

rhd_write_info()

subroutine mod_rhd_phys::rhd_write_info

(

integer, intent(in)

fh

)

Write this module's parameters to a snapsoht.

Definition at line 158 of file mod_rhd_phys.t.

rhos_to_e()

subroutine mod_rhd_phys::rhos_to_e	(	integer, intent(in)	ixI,
		integer, intent(in)	L,
		integer, intent(in)	ixO,
			L,
		double precision, dimension(ixi^s, nw)	w,
		double precision, dimension(ixi^s, 1:ndim), intent(in)	x
	)

Definition at line 851 of file mod_rhd_phys.t.

Here is the call graph for this function:

tc_params_read_rhd()

subroutine mod_rhd_phys::tc_params_read_rhd

(

type(tc_fluid), intent(inout)

fl

)

Definition at line 531 of file mod_rhd_phys.t.

Variable Documentation

e_

integer, public, protected mod_rhd_phys::e_

Index of the energy density (-1 if not present)

Definition at line 58 of file mod_rhd_phys.t.

he_abundance

double precision, public, protected mod_rhd_phys::he_abundance =0.1d0

Helium abundance over Hydrogen.

Definition at line 89 of file mod_rhd_phys.t.

kbmpmua4

double precision, public mod_rhd_phys::kbmpmua4

kb/(m_p mu)* 1/a_rad**4,

Definition at line 114 of file mod_rhd_phys.t.

mom

integer, dimension(:), allocatable, public, protected mod_rhd_phys::mom

Indices of the momentum density.

Definition at line 52 of file mod_rhd_phys.t.

p_

integer, public, protected mod_rhd_phys::p_

Index of the gas pressure (-1 if not present) should equal e_.

Definition at line 61 of file mod_rhd_phys.t.

r_e

integer, public, protected mod_rhd_phys::r_e

Index of the radiation energy.

Definition at line 64 of file mod_rhd_phys.t.

rc_fl

type(rc_fluid), allocatable, public mod_rhd_phys::rc_fl

Definition at line 28 of file mod_rhd_phys.t.

rhd_adiab

double precision, public mod_rhd_phys::rhd_adiab = 1.0d0

The adiabatic constant.

Definition at line 73 of file mod_rhd_phys.t.

rhd_dust

logical, public, protected mod_rhd_phys::rhd_dust = .false.

Whether dust is added.

Definition at line 31 of file mod_rhd_phys.t.

rhd_energy

logical, public, protected mod_rhd_phys::rhd_energy = .true.

Whether an energy equation is used.

Definition at line 19 of file mod_rhd_phys.t.

rhd_energy_interact

logical, public, protected mod_rhd_phys::rhd_energy_interact = .true.

Treat radiation-gas energy interaction.

Definition at line 101 of file mod_rhd_phys.t.

rhd_force_diagonal

logical, public, protected mod_rhd_phys::rhd_force_diagonal = .false.

Allows overruling default corner filling (for debug mode, since otherwise corner primitives fail)

Definition at line 86 of file mod_rhd_phys.t.

rhd_gamma

double precision, public mod_rhd_phys::rhd_gamma = 5.d0/3.0d0

The adiabatic index.

Definition at line 70 of file mod_rhd_phys.t.

rhd_gravity

logical, public, protected mod_rhd_phys::rhd_gravity = .false.

Whether gravity is added.

Definition at line 37 of file mod_rhd_phys.t.

rhd_n_tracer

integer, public, protected mod_rhd_phys::rhd_n_tracer = 0

Number of tracer species.

Definition at line 46 of file mod_rhd_phys.t.

rhd_particles

logical, public, protected mod_rhd_phys::rhd_particles = .false.

Whether particles module is added.

Definition at line 40 of file mod_rhd_phys.t.

rhd_pressure

character(len=8), public mod_rhd_phys::rhd_pressure = 'Trad'

In the case of no rhd_energy, how to compute pressure.

Definition at line 95 of file mod_rhd_phys.t.

rhd_radiation_advection

logical, public, protected mod_rhd_phys::rhd_radiation_advection = .true.

Treat radiation advection.

Definition at line 107 of file mod_rhd_phys.t.

rhd_radiation_diffusion

logical, public, protected mod_rhd_phys::rhd_radiation_diffusion = .true.

Treat radiation energy diffusion.

Definition at line 104 of file mod_rhd_phys.t.

rhd_radiation_force

logical, public, protected mod_rhd_phys::rhd_radiation_force = .true.

Treat radiation fld_Rad_force.

Definition at line 98 of file mod_rhd_phys.t.

rhd_radiation_formalism

character(len=8), public mod_rhd_phys::rhd_radiation_formalism = 'fld'

Formalism to treat radiation.

Definition at line 92 of file mod_rhd_phys.t.

rhd_radiative_cooling

logical, public, protected mod_rhd_phys::rhd_radiative_cooling = .false.

Whether radiative cooling is added.

Definition at line 27 of file mod_rhd_phys.t.

rhd_rotating_frame

logical, public, protected mod_rhd_phys::rhd_rotating_frame = .false.

Whether rotating frame is activated.

Definition at line 43 of file mod_rhd_phys.t.

rhd_thermal_conduction

logical, public, protected mod_rhd_phys::rhd_thermal_conduction = .false.

Whether thermal conduction is added.

Definition at line 22 of file mod_rhd_phys.t.

rhd_trac

logical, public, protected mod_rhd_phys::rhd_trac = .false.

Whether TRAC method is used.

Definition at line 82 of file mod_rhd_phys.t.

rhd_trac_type

integer, public, protected mod_rhd_phys::rhd_trac_type = 1

Definition at line 83 of file mod_rhd_phys.t.

rhd_viscosity

logical, public, protected mod_rhd_phys::rhd_viscosity = .false.

Whether viscosity is added.

Definition at line 34 of file mod_rhd_phys.t.

rho_

integer, public, protected mod_rhd_phys::rho_

Index of the density (in the w array)

Definition at line 49 of file mod_rhd_phys.t.

small_r_e

double precision, public, protected mod_rhd_phys::small_r_e = 0.d0

The smallest allowed radiation energy.

Definition at line 79 of file mod_rhd_phys.t.

tc_fl

type(tc_fluid), allocatable, public mod_rhd_phys::tc_fl

Definition at line 23 of file mod_rhd_phys.t.

tcoff_

integer, public, protected mod_rhd_phys::tcoff_

Index of the cutoff temperature for the TRAC method.

Definition at line 67 of file mod_rhd_phys.t.

te_fl_rhd

type(te_fluid), allocatable, public mod_rhd_phys::te_fl_rhd

Definition at line 24 of file mod_rhd_phys.t.

tracer

integer, dimension(:), allocatable, public, protected mod_rhd_phys::tracer

Indices of the tracers.

Definition at line 55 of file mod_rhd_phys.t.
